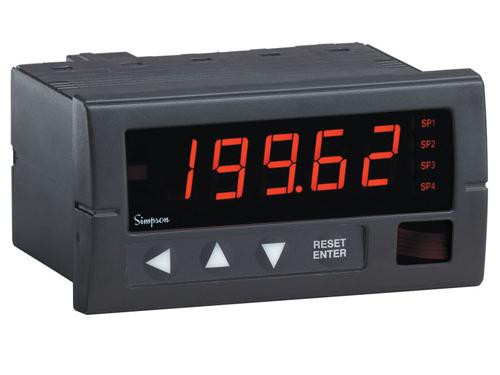

The Simpson Electric Hawk 340 digital temperature meter features a 7 segment bright red LED display with five brightness display levels and 0.56" (14.2 mm) digits. The Hawk 340 is a 4-digit model and features an easy to understand programming menu. The meters come in a 1/8-DIN shallow depth case and have NEMA 4X-rated front panels for increased protection.

The H340 will accept thermocouples Type-J, Type-K, Type-E and Type-T as well as Pt100 3-wire RTDs. The H340 also features 1-5 amp relays as well as analog outputs and excitation outputs for added flexibility and control.

Features:

• All parameters set from easy to understand front panel access
• One, two or four 5-amp relays optional
• 7-segment 4-digit red LED
• Five user-selectable brightness levels
• Activated set point indicators on display
• Min/Max and password lockout
• NEMA-4X rated front panel
• RS-485 digital communications output available by special order
• 4-20mA or 0-10 DCV analog outputs optional 1/8-DIN, shallow depth case, 3.24"
• Din Rail Adapter available

Specifications:

• Basic Unit: 4 Digit, Red LED
• Power Supply: 9-36 DCV
• Function/Range: K Thermocouple
• Output Signal: 4-20 DCmA
• 5A Relays: One
• Excitation: 12 DCV - 100mA max current

Spec Sheets:

• Datasheet.pdf
• Operator's Manual.pdf
