OPTO 22 - GRV-OAC-12 _ AC digital output, 12 channels, 12-250 VAC

Quick Specs:

AC digital output
12 channels
12-250 VAC

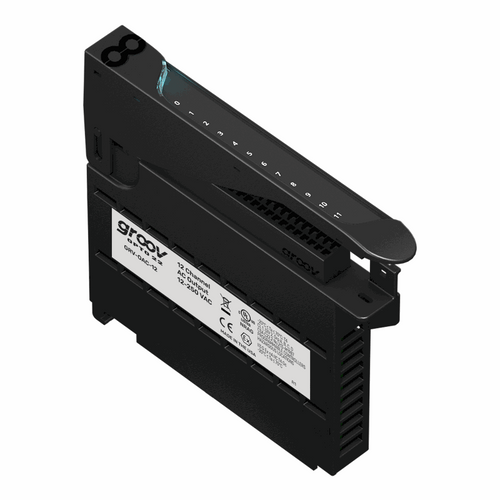

The GRV-OAC-12 digital output module can switch up to 12 separate AC loads of 12-250 VAC each. The module is part of the groov EPIC^® system and provides 300 volts of transient protection for sensitive control electronics from industrial field signals. AC outputs are zero voltage turn on and zero current turn off to minimize transients during switching.

The GRV-OAC-12 offers a full set of features, including:

On/off state
Output pulsing/TPO
On/off totalization
Open circuit indication

The GRV-OAC-12 module mounts on a groov EPIC chassis with other discrete, analog, and serial groov I/O modules and a GRV-EPIC-PR1 processor.

NOTE: For projects with simple requirements, the lower-cost GRV-OACS-12 offers on and off switching only.

Specifications:

Feature	GRV-OACI-12	GRV-OACIS-12	GRV-OAC-12	GRV-OACS-12
Number of channels	12	12	12	12
Channel-to-channel isolation	x	x
On/off state	x	x	x	x
Output pulsing/TPO	x		x
On/off totalization	x		x
Problem indication	x		x

Specification	GRV-OACI-12	GRV-OACIS-12	GRV-OAC-12	GRV-OACS-12
Line Voltage	12 - 250 VAC	12 - 250 VAC	12 - 250 VAC	12 - 250 VAC
Current Rating (per channel)	0.5 A	0.5 A	0.5 A	0.5 A
Recommended Max. Fuse (fast) or Circuit Breaker	2 A 250 VAC / channel, 6 A 250 VAC common	2 A 250 VAC / channel, 6 A 250 VAC common	2 A 250 VAC / channel, 6 A 250 VAC common	2 A 250 VAC / channel, 6 A 250 VAC common
Minimum Load Current	20 mA	20 mA	20 mA	20 mA
Output Voltage Drop	1 V	1 V	1 V	1 V
Off-state Leakage at Nominal Voltage - 60 Hz	1.25 mA @240 VAC 0.7 mA @120 VAC	1.25 mA @240 VAC 0.7 mA @120 VAC	1.25 mA @240 VAC 0.7 mA @120 VAC	1.25 mA @240 VAC 0.7 mA @120 VAC
Peak Blocking Voltage	500 V	500 V	500 V	500 V
Operating Frequency	40 to 60 Hz, 400 Hz	40 to 60 Hz, 400 Hz	40 to 60 Hz, 400 Hz	40 to 60 Hz, 400 Hz
Turn-on Time	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)
Turn-off Time	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)	¤ 1/2 cycle (zero crossing)
TPO Period (min, max, resolution)	0.1 seconds, 429496.7296 seconds, 0.001 seconds	N/A	0.1 seconds, 429496.7296 seconds, 0.001 seconds	N/A
Problem Indication	open circuit	none	open circuit	none
Isolation (field-to-logic)	300 V working, 1500 V transient (1 minute)	300 V working, 1500 V transient (1 minute)	300 V working, 1500 V transient (1 minute)	300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel)	300 V working	300 V working	NONE	NONE
Number of Channels	12	12	12	12
Chassis Power Consumption	1.3 W	1.3 W	1.3 W	1.3 W
Minimum GRV-EPIC-PR1 Firmware Version	1.0.0	1.0.0	1.0.0	1.0.0
Minimum PAC Project Version	10.0000	10.0000	10.0000	10.0000
Minimum Library Package for CODESYS Version	1.0.0.0	1.0.0.0	1.0.0.0	1.0.0.0
Wire Size	28 - 14 AWG	28 - 14 AWG	28 - 14 AWG	28 - 14 AWG
Torque, connector screw	2.5 in-lb (0.28 N-m)	2.5 in-lb (0.28 N-m)	2.5 in-lb (0.28 N-m)	2.5 in-lb (0.28 N-m)
Torque, hold-down screw	3.5 in-lb (0.4 N-m)	3.5 in-lb (0.4 N-m)	3.5 in-lb (0.4 N-m)	3.5 in-lb (0.4 N-m)
Temperature (operating)	-20 °C to +70 °C	-20 °C to +70 °C	-20 °C to +70 °C	-20 °C to +70 °C
Temperature (storage)	-40 °C to +85 °C	-40 °C to +85 °C	-40 °C to +85 °C	-40 °C to +85 °C
Relative Humidity (non-condensing)	5 - 95%	5 - 95%	5 - 95%	5 - 95%
Agency Approvals	UL/cUL(Class 1 Div. 2)^a; CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme; UKCA
Warranty	Lifetime
^a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
