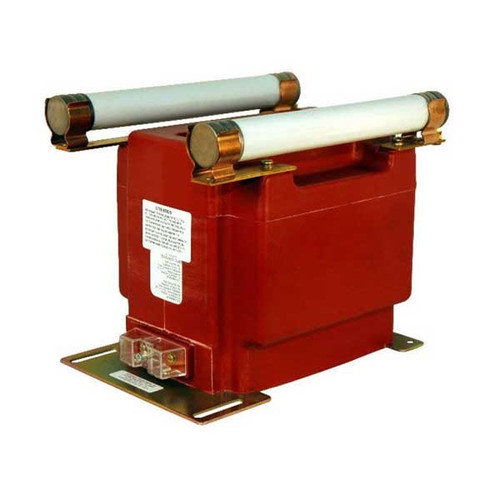

Crompton PTG5-2-110-1442FF _ Medium Voltage Potential Transformer s, Two Bushing, Fuses, Primary Voltage - 14400

ACCURACY CLASS:
0.3 WXMYZ, 1.2ZZ at 100% rated voltage with 120V based ANSI burden; 0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden

FREQUENCY:
60 Hz.

MAXIMUM SYSTEM VOLTAGE:
15.5kV, BIL 110kV full wave

THERMAL RATING:
1500 VA at 30°C. amb.
1000 VA at 55°C. amb.

APPROXIMATE WEIGHT:
85 lbs., unfused

Features:

• Primary terminals that are unfused are¼ - 20 brass screws with one flat washer and lockwasher, unless otherwise specified.
• Primary terminals that are fused are¼ - 20 brass screws with one flat washer, lockwasher and two nuts.
• Secondary terminals are No. 10-32 brass screws with one flat washer and lockwasher.
• The core and coil assembly is vacuum encapsulated in polyurethane resin.
• Thermal burden rating is for 120 volt secondaries
• Plated steel Mount ing base.
• Fuses have 1.63" Dia Caps and 11.50" clip centers.
• Switchgear style is similar to fused style. No fuse or fuse clip is provided, but inserts for fuse clips are supplied.
• A test cord is provided with each unit.

Specifications:

• Catalog Number: PTG5-2-110-1442FF
• Group: 2
• Primary Voltage: 14400
• Ratio: 120:1
• Secondary Voltage: 120
• Type: Fuses

Specifications Sheet:

• Datasheet.pdf
