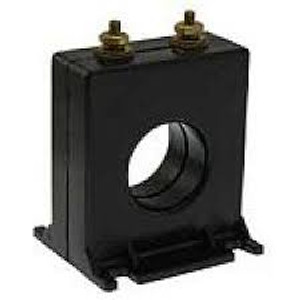

Crompton 170SHT-601 Current Transformer , Current Ratio - 600:5

Write a Review

$71.13

Brand: Crompton
SKU:: 170SHT-601
UPC:
Availability:: Y

APPLICATION:
Metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave

WINDOW DIAM

Current Stock:

Quantity:

Adding to cart… The item has been added

Add to Wish List

Description

0 Reviews

APPLICATION:
Metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave

WINDOW DIAMETER:
4.25

APPROXIMATE WEIGHT:
3 lbs.
CONNECTIONS:

Flexible leads are UL 1015 105° C CSA approved, #16 AWG, 24" long

Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut

Also available as 170SHL with leads Mount ing kit 59-0221
Specification:
CatalogNumber: 170SHT-601
Current Ratio: 600:5

V.A. FOR + 1% CLASS: 25
Weight in lbs: 3
Window Diameter: 4.25
