AEMC Thermocouple Thermometer Data Logger 1821
Write a Review
Write a Review
Aemc
AEMC Thermocouple Thermometer Data Logger 1821
$335.00
- Brand
- Aemc
- SKU:
- 2121.74
- UPC:
- 6.85E+11
AEMC 1821 is a Single channel thermometer with 7 selectable thermocouple types (J, K, T, N, E, R, S). Spot or continuous recording of up to 1 million measurements.
DESCRIPTION
The Thermocouple Thermometer Data Logger is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView® software.
Features:
- Selectable Thermocouple type: J, K, T, N, E, R, S
- Single channel model
- User selectable temperature units: °F, °C
- Min, and Max measurements stored
- HOLD function freezes the display
- Spot or continuous recording up to 1 million measurements
- Blue luminescent backlit display
- Programmable store on alarm function
- Magnetic mount
- Programmable alarms through software
- Battery or USB powered
SPECIFICATION
| Channel | One with LCD display and Backlight |
| Input | Two miniature thermocouple connectors |
| Measurement Range (Thermocouple Dependent) | J: -346 to 2192°F (-210 to 1200°C) K: -328 to 2501°F (-200 to 1372°C) T: -328 to 752°F (-200 to 400°C) N: -328 to 2372°F (-200 to 1300°C) E: -238 to 1742°F (-150 to 950°C) R/S: 32 to 3212°F (0 to 1767°C) |
| Alarms | Alarm thresholds set using the software. Visual alert on the product, recording can be triggered on alarm thresholds |
| Communication | USB 2.0 and Bluetooth 4.0 BLE range 10 m typical |
| Power Source | 3 x AA Batteries or USB port (micro-USB adaptor offered as an accessory) |
| Safety Compliance | IEC 61010-1 |
| Dimensions | 5.9 x 2.84 x 1.28" (150 x 72 x 32 mm) |
| Weight | 9.2 oz (260 g) with batteries |
0 Reviews Hide Reviews Show Reviews
Aemc
AEMC Thermocouple Thermometer Data Logger 1822
$415.00
AEMC Instruments 1822 Description: This Thermocouple Thermometer Data Logger is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is...
Aemc
AEMC RTD Thermometer Data Logger 1823
$340.00
AEMC Instruments 1823 Description: This RTD Thermometer Data Logger is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its...
Aemc

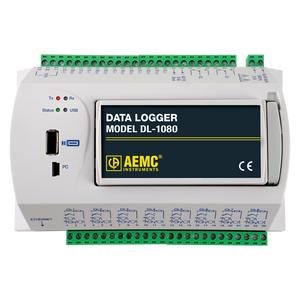

AEMC Data Logger Model DL-1080
