AEMC 2117.68 Clamp-on Meter Model 512 (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)
Write a Review
Write a Review
Aemc
AEMC 2117.68 Clamp-on Meter Model 512 (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)
$199.00
- Brand
- Aemc
- SKU:
- 2117.68
- UPC:
- 6.85E+11
- Availability:
- In Stock

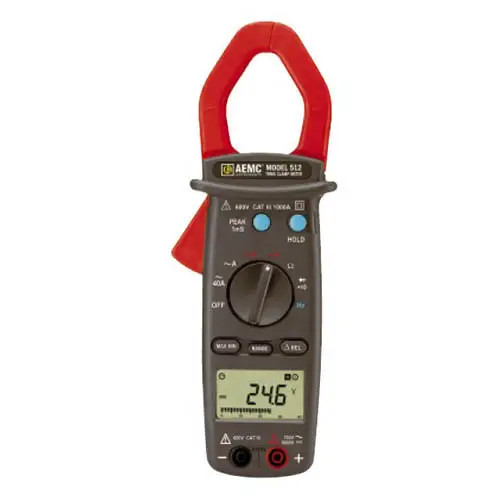

AEMC 512 Description:
The AEMC 512 Clamp-On Meter is a general purpose professional clamp-on meter that measures up to the toughest standards. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The AEMC 512 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.
The AEMC 512 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.
The AEMC 512 is sized for a comfortable, one-handed operation. This model is a True RMS clamp-on that provides RMS measurements for today's non-linear electrical environments. The jaw opening for the AEMC 512 is 1.575" (40mm).
Features
- Standard size, full function clamp-on meter
- 1000AAC current measurements
- 750VAC/1000VDC volt measurements
- TRMS measurements
- Resistance measurement to 4000?
- Continuity with beeper below 40?
- Frequency measurements from V and A
- Diode test
- 1ms Peak function for fast capture of signals
- Hold function to "freeze" readings
- Large easy-to-read 4000-count display
- 42-segment analog bargraph
- Includes test leads and soft carrying pouch
Applications
- Commercial, industrial, residential and HVAC/R troubleshooting
- Power panel, junction box and battery bank monitoring
- AC or DC motor testing
- Power plant troubleshooting
- Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
AEMC 512 Specifications:
| AC Current | |
|---|---|
| Range | 0.05A to 1000A |
| Resolution | 40A: 0.01A 400A: 0.1A 1000A: 1A |
| Basic Accuracy | 50 to 500Hz: ±1.9% of Reading + 5cts |
| Frequency Range | 50 to 500Hz |
| Overload Protection | 40A: 800Arms 400A: 1500Arms 1000A: 1500Arms |
| AC Volts | |
| Input Range | 0.5V to 750V |
| Range | 400V / 750V |
| Resolution | 0.1V / 1V |
| Accuracy | ±1.2% of Reading + 5cts |
| Input Impedance | 10MW |
| Overload Protection | 1000Vrms |
| Frequency Current Input | |
| Range | 4kHz |
| Resolution | 1Hz |
| Minimum Input Signal | 2Arms |
| Accuracy | ±0.1% of Reading + 1ct |
| Frequency Voltage Input | |
| Range | 10kHz |
| Resolution | 10Hz |
| Minimum Input Signal | 5Vrms |
| Accuracy | ±0.1% of Reading + 1ct |
| DC Volts | |
| Range | 0.2 to 1000V |
| Resolution | 400V: 0.1V 1000V: 1V |
| Accuracy | ±0.75% of Reading + 2cts |
| Input Impedance | 10MW |
| Overload Protection | 1200Vrms |
| Continuity | |
| Range | Beeper |
| Measurement | <40W |
| Max. Test Voltage | 3VDC |
| Overload Protection | 600Vrms |
| General Specifications | |
| Jaw Opening Size | 1.575" (40mm) |
| Battery | 9V, NEDA 1604 or 6F22 or 006P |
| Dimensions | 9.53 x 2.60 x 1.42" (242 x 66 x 36mm) |
| Weight | 14.10oz (400g) with batteries |
What's included with the AEMC 512
- True RMS Clamp-on Meter
- Pair of test leads
- Soft Carrying Case
- 9V Battery
- Manual
