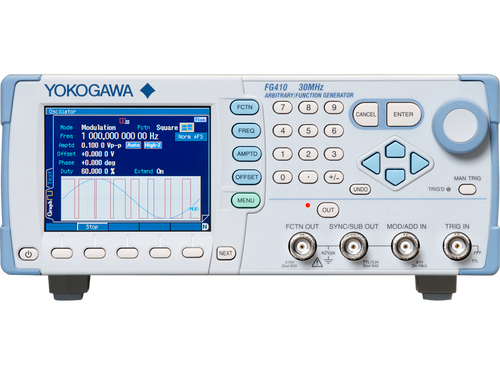

Yokogawa FG400 - Isolated Arbitrary / Function Generator

Brand: Yokogawa
SKU:: FG400
UPC:
Availability:: Y

Yokogawa FG400 - Isolated Arbitrary / Function Generator

Description
0 Reviews

Yokogawa FG400 - Isolated Arbitrary / Function Generator

The FG400 easily generates basic, application specific and arbitrary waveforms with a sine wave frequency range of .01 µHz to 30 MHz. Output waveforms consist of Sine, Square, Pulse, Ramp, Parameter-variable, Noise (Gaussian distribution), DC and Arbitrary. This unit includes isolated outputs that allow the user to use it in the development of floating circuits, like motor drives, inverters, power supplies and other power electronic devices. In addition, multiple units can be synchronized together to generate up to 12 phases of output.

Buy the FG410-D Directly from Instru-measure

Buy the FG420-D Directly from Instru-measure

Features:

Basic Waveforms:

Advanced Functions:

Input/Output Terminal:

General Specifications:

FG410: 1 channel. FG420: 2 channel
Output waveforms: Sine, Square, Pulse, Ramp, Parameter-variable waveform, noise, DC, and Arbitrary waveforms
Frequency range: Sine wave 0.01 µHz to 30 MHz
Amplitude resolution: 16 bits
Sampling rate: 120 MS/s
Output: 0 to 20 Volts, peak-to-peak
Synchronize up to 6 units to provide up to 12 output channels
GPIB and USB Interface
Generate waveforms acquired by Yokogawa's ScopeCorder and DL Series Oscilloscopes with XviewerLITE software
Warranty period for this instrument is 3-years
