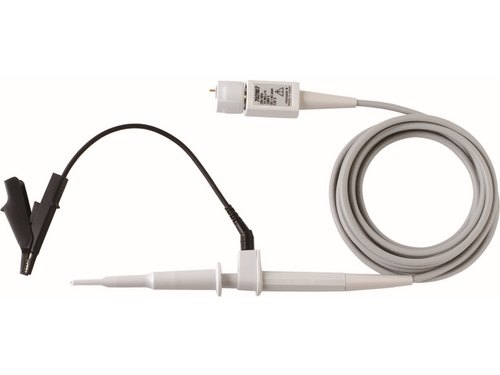

Yokogawa 702907 - Passive Probe 1000V / 200 MHz

Current Stock:

Specifications:

Operating environment ?40 to +85°C (no condensation)
Bandwidth: DC to 200MHz (-3dB)
Attenuation ratio: 10:1 ±2% (+5 to +40 °C), 10:1 ±3% (?40 to +5 °C, +40 to +85 °C)
Connector Type: BNC
Input Resistance: 10M? ±2% (typical)
Input Capacitance: 18.0pF (typical)
Matching input capacitance: 12pF to 22pF (typical)
Rise Time: 1.75 ns. (typical)
Propagation delay: 12.0 ns (typical)
Maximum input voltage, Space Between the pincher tip and safety ground lead:
- +/-1,000V (DC + ACpeak) CAT II
Probe length: 2.5m
Standard parts included: One each, B8099MR Pincher tip(high-side), B8099NK Safety ground lead (low-side)
Safety Rating (Probe Alone): EN61010-031, Measurement Category II 1000 V (DC + ACpeak).
