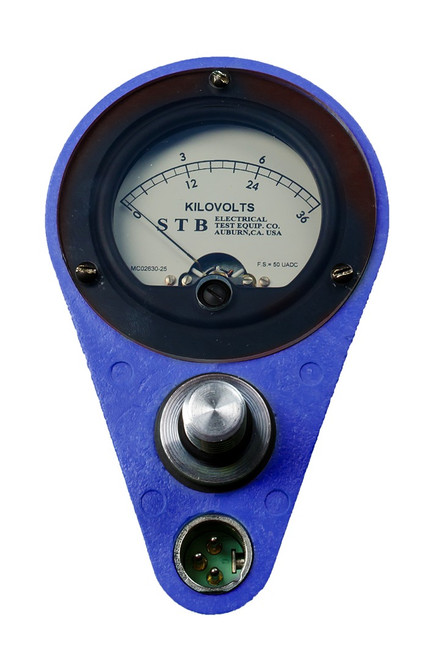

STB 9-36kV Phasing Voltmeter 50101-G-08
Write a Review
Write a Review
STB Transformer
STB 9-36kV Phasing Voltmeter 50101-G-08
$2,746.70
- Brand
- STB Transformer
- SKU:
- 50101-G-08
STB 9-36kV Phasing Voltmeter 50101-G-08
STB 9-36kV Phasing Voltmeter 50101-G-08 Probe Tip, Shepherds Hook, 6 Hot Sticks, Large Case Provides safe and convenient testing means for paralleling 3-phase high voltage circuits Consists of two resistance elements connected in series with an indicating meter in the series connection Two ranges, 9kV and 36kV, with a range selector switch mounted on the back of the meter housing Switch is clearly marked for the range of the voltmeter Typical use: Line-to-ground voltage measurements and phase for paralelling operations Scale markings on the voltmeter have a minimum of divisions and the figures are large enough to be easily read 8'-10' away when mounted on a suitable hot stick Input impedance: Approximately 72 megohms Maximum operating temperature range -20°F to 165°F (-30°C to 75°C) Ready to attach on hot stick 10' cable, a proof tester, battery and shepherd’s hook and probe tip included0 Reviews Hide Reviews Show Reviews
