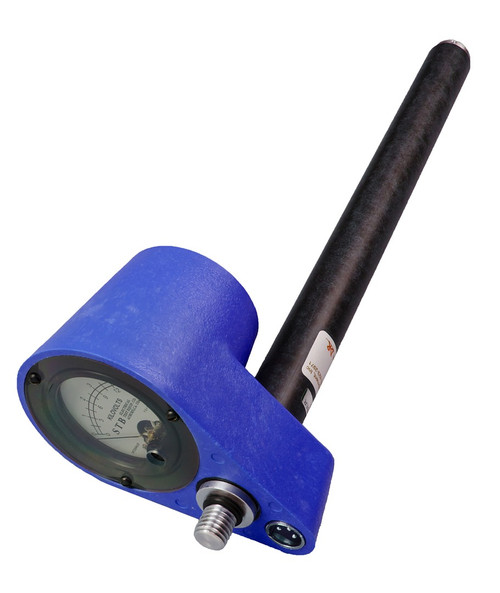

STB 0-50kV Phasing Voltmeter 50101-G-18

STB 0-50kV Phasing Voltmeter 50101-G-18 Probe Tip, Shepherds Hook, Standard Case STB unit replaces 3 separate units manufactured by competitors - line phasing, capacitance phasing and line to ground Versatile, lightweight and easy to use Each portable meter has a single range Meter usage: Voltage detection and phasing at capacitance test points or voltage detection and phasing on bare energized conductors (overhead & underground) Probes can be separated to be used as a voltage sensor or capacitance sensor Five position selector switch used to select voltage sensing on capacitance tap or direct line and phasing on capacitance tap, direct line or a battery test position No exposed conducting terminals or meter circuitry Locking cable connector provides positive contact Scale is large enough to be easily read 8'-10' when mounted on a suitable hot stick Line to ground voltage readings are accurate within 3% at full scale Maximum operating temperature range -20°F to 165°F (-30°C to 75°C) 25' coiled cable included
