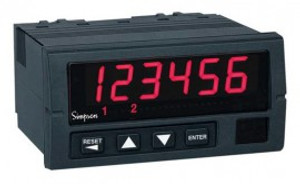

Simpson S66011200 TOTL, 120VAC, PLSE, 2R

Simpson S66011200 TOTL, 120VAC, PLSE, 2R

Write a Review
$412.97
Brand
SKU:
S66011200

Simpson S66011200 TOTL, 120VAC, PLSE, 2R

Simpson Electric S66011200 Offers

This panel meter has a remote reset capability.

Adding to cart… The item has been added
Add to Wish List

Simpson S66011200 TOTL, 120VAC, PLSE, 2R

Simpson Electric S66011200 Offers

This panel meter has a remote reset capability.

Features

  • Easily programmed from the front panel
  • Input variety: Quadrature, Switch, TTL, CMOS, NAMUR, PNP, NPN
  • Software functions include: Password, Display Scaling, Set Point Programming, Decimal Point Selection
  • 5A relay outputs
  • Optional 12DCV excitation

Specifications:

Type6-digit, 7-segment, red LED
Height0.56in (14.2mm)
Decimal PointUser-programmable
Count Direction"+" indication implied, "-" indication displayed
Display Range-99,999 to +999,999
Output Indicators1 and 2
AC Voltages120 or 240VAC, ±10%
Power Consumption3VA
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Relative Humidity0 to 80% non-condensing for temperatures less than 89.6°F (32°C), decreasing linearly to 50% at 104°F (40°C)
Ambient Temperature77°F (25°C)
Temperature Coefficient (per °C)±100ppm/°C
Warm-up Time15 minutes
Bezel3.93 x 2.04 x 0.52in (99.8 x 51.8 x 13.2mm)
Depth3.24in (82.3mm)
Panel Cutout3.62 x 1.77in (92 x 45mm)
Case MaterialPBT-ABS

What's included with the Simpson Electric S66011200

  • Simpson S66011200 Totalizer Panel Meter, 2R, 12VAC
