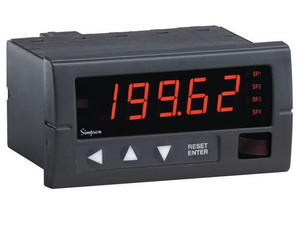

The Simpson Electric Hawk 345 digital panel meter features a 7 segment bright red LED display with five brightness display levels and 0.56" (14.2 mm) digits. The Hawk 345 is a 4.5-digit (H345) model and features an easy to understand programming menu. The meters come in a 1/8-DIN shallow depth case and have NEMA 4X-rated front panels for increased protection.

The Hawk 345 will accept various types of inputs including AC Current, AC Voltage, DC Current, DC Voltage and Process. These meters can also be ordered with excitation and relay outputs for added flexibility and control.

Features:

• All parameters set from easy to understand front panel access
• Optional one, two or four 5 amp relays
• 7 segment 4.5-digit red LED with five brightness display levels
• ACV and DCV power supply options available
• Activated set point indicators on display
• Easy to understand programming menu
• 16 point scaling linearization
• Screw terminals for easy installation
• 1/8 DIN shallow depth case (only 3.24" behind panel)
• Peak/Valley and password lockout
• NEMA 4X rated front panel

Specifications:

• Basic Unit: 4-1/2 digit, Red LED
• Power Supply: 85-250 ACV (4-1/2 only)
• Function/Range: 2 ACV
• Output Signal: RS-485 (4-1/2 only)
• 5A Relays: One
• Excitation: None

Spec Sheets:

• Datasheet.pdf
• Operator's Manual.pdf
