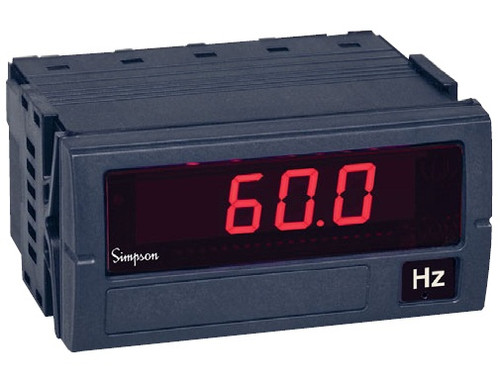

Simpson F451720 4-1/2, 120VAC, 1-5 VDC

Simpson F451720 4-1/2, 120VAC, 1-5 VDCThe Simpson Falcon Series digital panel meters are premium quality 1/8-DIN meters for industrial applications. All Falcon units feature selectable decimal point from the terminal block and display scaling, providing wide application flexibility. In addition, most signal input ranges are easy to change with jumpers on the main board. The Falcon has a 0.56? bright red LED display for high visibility. Compactly designed for applications requiring minimal rear panel depth, the Falcon fits a standard 1/8-DIN panel cutout (91.9mm x 45mm) and requires less than 3? behind the panel. A screw terminal connector is a standard feature for easy wiring of the power supply and signal input connections. - Case Size: Standard 1/8 DIN - Accuracy: ±0.1% (F35); ±0.02% (F45DCV & Process); ±0.5% (F45DCA); ±0.5% (F45AC) - Auto-Zero - Choice of AC or DC Power Supplies - Broad Range Scaling and Adjustable Zero Offset for Process Inputs - User-Selectable Decimal Point. - Optional Excitation Output 12 VDC or 24 VDC - Easy Installation Using Screw Terminals
