Simpson F451211The Simpson Falcon Series digital panel meters are premium quality 1/8-DIN meters for industrial applications. All Falcon units feature selectable decimal point from the terminal block and display scaling, providing wide application flexibility. In addition, most signal input ranges are easy to change with jumpers on the main board. The Falcon has a 0.56? bright red LED display for high visibility. Compactly designed for applications requiring minimal rear panel depth, the Falcon fits a standard 1/8-DIN panel cutout (91.9mm x 45mm) and requires less than 3? behind the panel. A screw terminal connector is a standard feature for easy wiring of the power supply and signal input connections. - Case Size: Standard 1/8 DIN - Accuracy: ±0.1% (F35); ±0.02% (F45DCV & Process); ±0.5% (F45DCA); ±0.5% (F45AC) - Auto-Zero - Choice of AC or DC Power Supplies - Broad Range Scaling and Adjustable Zero Offset for Process Inputs - User-Selectable Decimal Point. - Optional Excitation Output 12 VDC or 24 VDC - Easy Installation Using Screw Terminals

Simpson F451211

Write a Review
$275.07
Brand
SKU:
F451211

Simpson F451211

Simpson Electric F45 Offers

Get accurate readouts with the S

Adding to cart… The item has been added
Add to Wish List

Simpson F451211

Simpson Electric F45 Offers

Get accurate readouts with the Simpson F45 Falcon Digital Panel Meter for DC current. The 4.5-digit red LED display provides increased readability, while the front panel pops off for easy decimal point setting and display scaling. The meter has a shallow case that fits 1/8 DIN cutouts.

Features

  • 4.5-digit 0.56" (14.2 mm) red LED display provides increased readability
  • Shallow case requires only 3.12" (79 mm) behind the panel and fits 1/8 DIN cutouts
  • Front panel pops off for easy decimal point setting and display scaling
  • Excitation output

Specifications:

Maximum DC Current Input10 mA
Display TypeLED
DC Current Measurement Ranges200 μA
DC Current Resolution10μA
Sampling Rate2.5 samples/second
Operating Temperature32 to 131°F (0 to 55°C)
Storage Temperature14 to 140°F (-10 to 60°C)
Power Requirements120 VAC
Product Weight9 oz (255.1 g)
Output(s)12 VDC at 25 mA max current
Operating Humidity0 to 85%, non-condensing

What's included with the Simpson Electric F45


  • Falcon Digital Panel Meter
  • 2-Year Limited Warranty
Write a Review

0 Reviews Hide Reviews Show Reviews

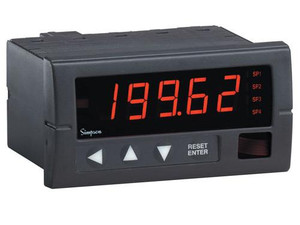

Simpson H335431200
