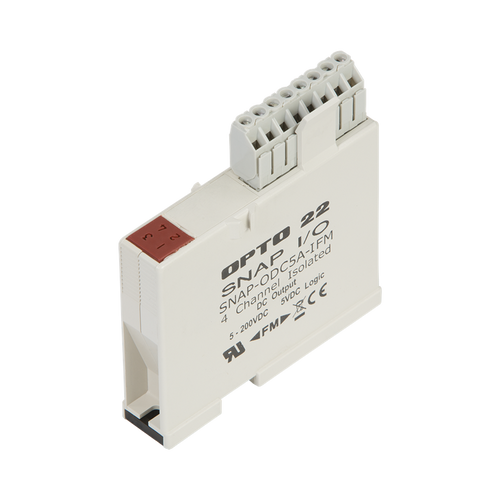

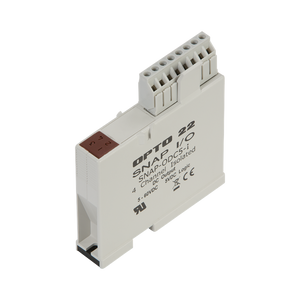

OPTO 22 - SNAP-ODC5A-IFM _ SNAP 4-Ch Isolated 5-200 VDC Digital (Discrete) Output Module, FM ApprovedQuick Specs:
- SNAP 4-Ch Isolated 5-200 VDC Digital (Discrete) Output Module
- FM Approved
This module is Factory Mutual approved.
Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.
For easier, faster wiring, see SNAP TEX cables and breakout boards.
Build your system in the SNAP I/O Configurator.
Specifications:
|
| SNAP-ODC5-iFM | SNAP-ODC5A-iFM |
| Key Feature | Four isolated channels | Four isolated channels |
| Torque, hold-down screws | 4 in-lb (0.45 N-m) | 4 in-lb (0.45 N-m) |
| Torque, connector screws | 5.26 in-lb (0.6 N-m) | 5.26 in-lb (0.6 N-m) |
| Field Side Ratings (each channel) | ||
| Line Voltage - Range | 5 - 60 VDC | 5 - 200 VDC |
| Line Voltage - Nominal | 5 - 48 VDC | 5 - 200 VDC |
| Current Rating 0°C to 70°C Ambient | 3 amps per module | 3 amps per module |
| Surge Current | 5 amps peak for 1 second | 5 amps peak for 1 second |
| Minimum Load | 20 mA | 20 mA |
| Output Voltage Drop | 1.6 volts max.@ 0.75 amps | 1.6 volts max.@ 0.75 amps |
| Off-state Leakage | 1 mA @ 60 VDC | 1 mA @ 60 VDC |
| Peak Blocking Voltage | 60 VDC | 200 VDC |
| Fuse (Common to all Channels) | Has four isolated channels. User must provide own fusing. | Has four isolated channels. User must provide own fusing. |
| Logic Side Ratings | ||
| Pickup Voltage | 4 V @ 5.5 mA | 4 V @ 5.5 mA |
| Dropout Voltage | 1 VDC | 1 VDC |
| Control Resistance | 220 ohms | 220 ohms |
| Logic Supply Voltage | 5 VDC ± 0.25 VDC | 5 VDC ± 0.25 VDC |
| Logic Supply Current | 50 mA maximum | 50 mA maximum |
| Module Ratings | ||
| Number of Channels Per Module | 4 | 4 |
| Turn-on Time | 100 usec | 100 usec |
| Turn-off Time | 750 usec | 750 usec |
| Isolation (Field Side to Logic Side) | 4,000 volts (transient) | 4,000 volts (transient) |
| Temperature | -20 ° to 70 °C, operating | -20 ° to 70 °C, operating |
| Wire size range | 22 to 14 AWG | 22 to 14 AWG |
| Agency Approvals | CE, FM, RoHS, DFARS; UKCA | CE, FM, RoHS, DFARS; UKCA |
| Warranty | Lifetime | Lifetime |
