SNAP-IT-RM16

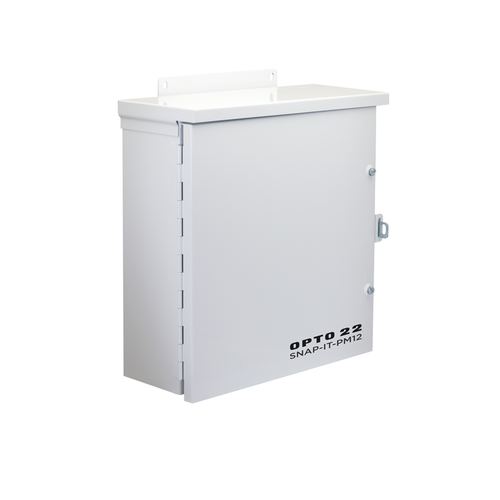

SNAP-IT-PM12

SNAP-IT-WM4

Mounting

Rack mounted

Panel mounted

Wall mounted

Enclosure

Standard 19-inch metal rack-mount enclosure, 3U

Metal enclosure meets NEMA 3R.¹

Polycarbonate industrial enclo­sure with transparent cover

Dimensions

17.25" W x 5.22" H x 7.5" D
(43.8 cm x 13.3 cm x 19.1 cm) Depth includes modules, which extend 0.88" (2.3 cm) out the back of the box for wiring convenience.

16.19" W x 18.25" H x 6.57" D
(41.1 cm x 46.4 cm x 16.7 cm)

9.84" W x 6.89" H x 5.9" D
(25.0 cm x 17.5 cm x 15.0 cm)

Items included

Enclosure, SNAP PAC mounting rack, and power supply

Enclosure, SNAP PAC mounting rack, power supply, and 24 V loop power supply

Enclosure, SNAP PAC mounting rack, and power supply

I/O module slots

16

12

4

Power supply

UL rated 120-250 VAC
Manufacturer rated 100-250 VAC

UL rated 120-250 VAC
Manufacturer rated 100-250 VAC
Loop power supply: 24 VDC

100 - 240 VAC (50/60 Hz)

Power consumption

30 W

30 W

10 W

Power cord
(order separately)

120 VAC United States,
240 VAC United Kingdom, or
240 VAC International

n/a

n/a

LED indicators²

On front panel, 64 LEDs indicate point status for 4-channel digital
I/O modules; brain or controller LEDs are also visible on front.

Status LEDs on I/O and status/communication LEDs on brain or controller are not visible outside the enclosure.

Status LEDs on I/O and status/communication LEDs on brain or controller are visible through transparent cover.

Operating temperature³

0° to 70° C (32 to 158° F)

0° to 70° C (32 to 158° F)

- 40 to 80°C ( - 40 to 176° F)

Storage temperature³

- 30° to 85° C ( - 22 to 185° F)

- 30° to 85° C ( - 22 to 185° F)

- 40 to 80 °C ( - 40 to 176° F)

Humidity

0 - 95% humidity, non-condensing

0 - 95% humidity, non-condens­ing

0 - 95% humidity, non-condensing

Warranty

30 months

30 months

30 months

¹ NEMA 3 or NEMA 4 is recommended for exterior use.
² See I/O, brain, or controller data sheets for details on LEDs.
³ Operating and storage temperatures listed are for the enclosure only. Temperature limitations for the processor and I/O you install inside the enclosure are more limiting. See the processor€™s and I/O modules€™ data sheets for their specifications.
