OPTO 22 - SNAP-AOA-23-iSRC _ Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output Module, with Loop Sourcing

Write a Review

$607.00

Brand: OPTO 22
SKU:: SNAP-AOA-23-iSRC
UPC:

OPTO 22 - SNAP-AOA-23-iSRC _ Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output Module, with Loop Sourcing

OPTO 22 - SNAP-AOA-23-iSRC _ Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

OPTO 22 - SNAP-AOA-23-iSRC _ Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output Module, with Loop Sourcing

Quick Specs:

Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output Module
with Loop Sourcing

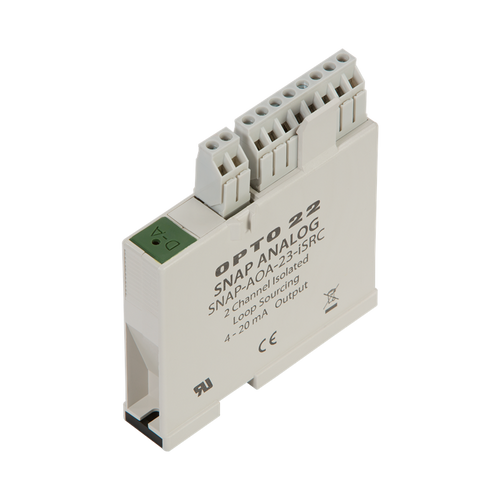

The SNAP-AOA-23-iSRC module provides two channels of current output with a nominal output range of 4 mA to 20 mA. The module includes built-in loop sourcing capability.

With the connection of a single 24 V power supply, the module sources two 24 V loops. The loop sources are internally connected to the individual outputs. The two channels and their loop sources are isolated from each other; they do not share any field connection. In addition, each loop source is current limited so that an external fault on one loop will not affect the other.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you need a Factory Mutual-approved version, see the SNAP-AOA-23-iSRC-FM instead.

Specifications:

Input	12-bit serial data (each channel)
Outputs	4 to 20 mA (each channel)
Span	16 mA
Resolution	3.9 microamps
Response Time (% of span/delta I/ delta time)	99.9%/15.98 mA/3 mS
DC Common Mode Rejection	>-120 dB
AC Common Mode Rejection	>-120 dB @ 60 Hz
Maximum Operating Common Mode Voltage	250 V
Common Mode Resistance	>1000 Megohms
Accuracy	0.1% of Span
Gain Temperature Coefficient	50 PPM/°C
Offset Temperature Coefficient	20 PPM/°C
Max. Loop Resistance @ Loop Supply	950 Ohms
Ambient Temperature: Operating Storage	-20 °C to 70 °C -40 °C to 85 °C
Humidity	5-95%, non-condensing
Isolation: Optical	4000 V
Isolation: Transformer	1500 V
Isolation: Channel to Channel	250 V continuous (1500 V transient)
Power Requirements	5 Volts DC (±0.15) @ 200 mA
Power Requirements - Loop Power (Input)	From separate field connector; 24 VDC nominal (70 mA max) @ 24 V input, both loops @ 20 mA), 30 VDC maximum
Loop Power (Output)	24 VDC (±1.5 V) @ 20 mA Open loop: 30 V maximum Shorted loop: 24 mA nominal
LED on top of module	Indicates that there is power to the 24v source supply 2-pin connector
Agency Approvals	CE, RoHS, DFARS, UKCA FM (SNAP-AOA-23-iSRC-FM only)
Torque, hold-down screws	4 in-lb (0.45 N-m)
Torque, connector screws	5.26 in-lb (0.6 N-m)
Wire size range	22 to 14 AWG
Warranty	Lifetime
