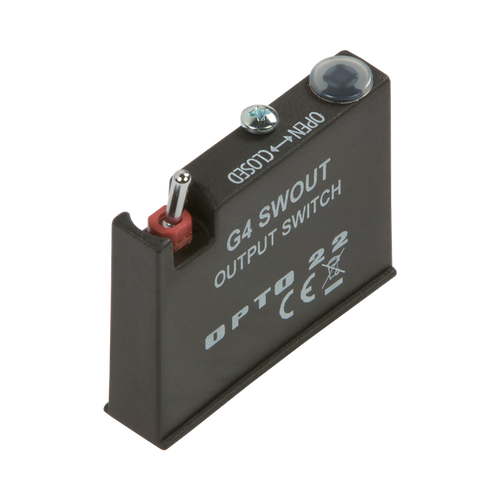

Order OPTO 22 - G4SWOUT G4 Digital Output Switch, 250 VAC

OPTO 22 - G4SWOUT _ G4 Digital Output Switch, 250 VAC

Write a Review
$32.50
Brand
SKU:
G4SWOUT

OPTO 22 - G4SWOUT _ G4 Digital Output Switch, 250 VAC

Quick Specs:

  • G4 Digital Output Switch
  • 250 VAC
Adding to cart… The item has been added
Add to Wish List

OPTO 22 - G4SWOUT _ G4 Digital Output Switch, 250 VAC

Quick Specs:

  • G4 Digital Output Switch
  • 250 VAC
G4 I/O family

The G4SWOUT module is ideal for testing field wiring and devices by simulating an output from the computer.

The G4SWOUT output test module provides a manual toggle switch on the field side. The switch closes a contact that shorts the field terminals to turn on a field output. The switch can handle 3 amps at 250 VAC/VDC. Internally, there is no connection to the logic side of the module.

Compatible with Raspberry Pi. The G4SWOUT can be used with the Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.

Specifications:

Isolation, input-to-output (transient):
1 ms
1 minute



4000 volts
1500 volts

Temperature:
Operating
Storage



-30 to +70 °C
-30 to +85 °C
