GE ITI 117-322 Current Transformer CT, Indoor, Model: 117, Ratio: 3200:5 A, Single Phase, 10 kV BIL, 60 Hz These Instrument grade, window type current transformers are used with ammeters in such applications as panel boards, control panels and engine...

GE ITI 113-201 Current Transformer CT, Indoor, Model: 113, Ratio: 200:5 A, Single Phase, 10 kV BIL, 60 Hz These Instrument grade, window type current transformers are used with ammeters in such applications as panel boards, control panels and engine...

GE ITI 112-201 Current Transformer CT, Indoor, Model: 112, Ratio: 200:5 A, Single Phase, 10 kV BIL, 60 Hz These Instrument grade, window type current transformers are used with ammeters in such applications as panel boards, control panels and engine...

Crompton 468-346 _ Voltage Transformer , Turns Ratio - 2.88:1, Voltage Rating - 346:120FREQUENCY: 60 Hz. STANDARD SECONDARY VOLTAGE: 120 Volts INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave ACCURACY CLASS:± 0.6% at all burdens up to 7.5 VA and±1.5% 20...

Crompton 467-069 _ Voltage Transformer , Turns Ratio - 0.58:1, Voltage Rating - 69.3:120FREQUENCY: 60 Hz. STANDARD SECONDARY VOLTAGE: 120 Volts INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave ACCURACY CLASS:± 1% at all burdens up to 5 VA at 1.0 and 0...

Crompton 780-401 _ Current Transformer , Current Ratio - 400:5, Relay - C50APPLICATION: Relaying and Metering FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave CONTINUOUS THERMAL RATING FACTOR: 50:5 thru 1200:5 2.0 at 30°C amb, 1.5...

Crompton 780-101 _ Current Transformer , Current Ratio - 100:5, Relay - C10APPLICATION: Relaying and Metering FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave CONTINUOUS THERMAL RATING FACTOR: 50:5 thru 1200:5 2.0 at 30°C amb, 1.5...

Crompton 7RL-201 Current Transformer , Current Ratio - 200:5APPLICATION: With ammeters, wattmeters and cross Current compensation. FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave WINDOW DIAMETER: 2.50” APPROXIMATE WEIGHT: 1.5 lbs...

Crompton 7SHT-501 Current Transformer , Current Ratio - 500:5APPLICATION: With ammeters, wattmeters and cross Current compensation. FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave WINDOW DIAMETER: 2.50” APPROXIMATE WEIGHT: 1.5 lbs...

Crompton Current Transformer 10SFT-401Crompton Current Transformer 10SFT-401 Current Transformer 5 Series Information Flexible Leads Are UL 1015 105,°C, CSA Approved #16 AWG, 24" Long Terminals Are Brass Studs No. 8?32 UNC with One Flat Washer,...

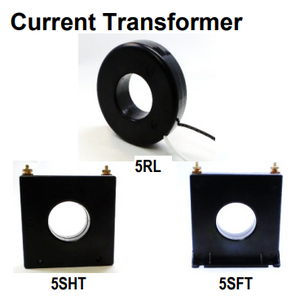

Crompton 5RL-601 Current Transformer , Current RATIO - 600:5APPLICATION: With ammeters, wattmeters and cross Current compensation FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave WINDOW DIAMETER: 1.56” APPROXIMATE WEIGHT: 1.0 lbs...

Crompton 5SFT-151 Current Transformer , Current RATIO - 150:5APPLICATION: With ammeters, wattmeters and cross Current compensation FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave WINDOW DIAMETER: 1.56” APPROXIMATE WEIGHT: 1.0 lbs...
