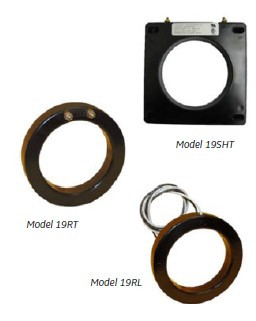

GE ITI 19RT-302 Current Transformer CT, Indoor, Model: 19, Ratio: 3000:5 A, Single Phase, 10 kV BIL, 60 Hz
Write a Review
Write a Review
GE ITI
GE ITI 19RT-302 Current Transformer CT, Indoor, Model: 19, Ratio: 3000:5 A, Single Phase, 10 kV BIL, 60 Hz
$242.48
- Brand
- GE ITI
- SKU:
- 19RT-302
GE ITI 19RT-302 Current Transformer CT, Indoor, Model: 19, Ratio: 3000:5 A, Single Phase, 10 kV BIL, 60 Hz
These Instrument grade, window type curr
GE ITI 19RT-302 Current Transformer CT, Indoor, Model: 19, Ratio: 3000:5 A, Single Phase, 10 kV BIL, 60 Hz
These Instrument grade, window type current transformers are used with ammeters in such applications as panel boards, control panels and engine generators. They can be supplied with leads or terminals and mounting brackets.
Features
- UL recognized - file number E93779
- CSA approved - file number LR89403
- Meet requirements of IEEE C57.13
- Units can be designed to meet the requirements of IEC-44-1
- High accuracy and burden capability
- Convenient mounting and wiring
- Test certificates and certified test reports available
Application
- Metering
General Specifications:
- Frequency: 50-400 Hz
- Insulation Level: 600 Volts, 10 kV BIL full wave
- Window Diameter: 4.25"
Product Main Specifications:
- CT
- Indoor
- Model: 19
- Ratio: 3000:5 A
- Single Phase
- 10 kV BIL
- 60 Hz
- Single Ratio
- Metering Class: 0.3 B0.9
- Rating Factor: 1.0
- Window Diameter: 4.25
Specification Datasheet:
Datasheet.pdf0 Reviews Hide Reviews Show Reviews
