GE ITI 188X7500 Current Transformer CT, Indoor, Model: 188, Ratio: 5:7.5 A, Single Phase, 10 kV BIL, 60 Hz
Write a Review
Write a Review
GE ITI
GE ITI 188X7500 Current Transformer CT, Indoor, Model: 188, Ratio: 5:7.5 A, Single Phase, 10 kV BIL, 60 Hz
$991.27
- Brand
- GE ITI
- SKU:
- 188X7500
GE ITI 188X7500 Current Transformer CT, Indoor, Model: 188, Ratio: 5:7.5 A, Single Phase, 10 kV BIL, 60 Hz
Auxiliary current transformers are desig
GE ITI 188X7500 Current Transformer CT, Indoor, Model: 188, Ratio: 5:7.5 A, Single Phase, 10 kV BIL, 60 Hz
Auxiliary current transformers are designed for connection in the secondary circuit of a main current transformer to change the effective ratio on meters or relays. Wound primary CTs which are rated for the system voltage are available for primary currents up to 50 amperes. We also offer summation CTs for summing up to six secondaries.
Features
- UL recognized - file number E93779
- CSA approved - file number LR89403
- Meet requirements of IEEE C57.13
- Some models have integral mounting feet or can be supplied with mounting brackets
- High accuracy at low currents
- 4 kV primary to secondary isolation (wound primaries)
- Test certificates and certified test reports available
Application
- Relaying and metering
General Specifications:
- Frequency: 50-400 Hz
- Insulation Level: 600 Volts, 10 kV BIL full wave
Product Main Specifications:
- CT
- Indoor
- Model: 188
- Ratio: 5:7.5 A
- Single Phase
- 10 kV BIL
- 60 Hz
- Single Ratio
- Metering Class: 0.3 B0.2
- Rating Factor: 1.50
Specification Datasheet:
Datasheet.pdf0 Reviews Hide Reviews Show Reviews
GE ITI

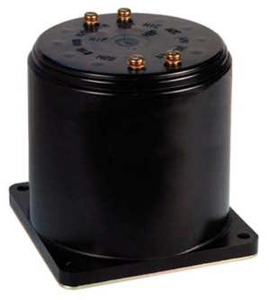

GE ITI 188X7500-5 Current Transformer CT, Indoor, Model: 188, Ratio: 7.5:5 A, Single Phase, 10 kV BIL, 60 Hz
