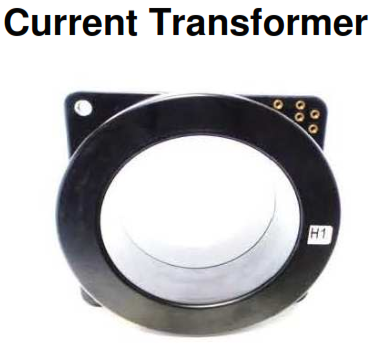

Crompton 786-202MR _ Current Transformer , Relay Class - C400, Window Size - 6.5
Write a Review
Write a Review
Crompton
Crompton 786-202MR _ Current Transformer , Relay Class - C400, Window Size - 6.5
$2,002.39
- Brand
- Crompton
- SKU:
- 786-202MR
- Availability:
- Y
Crompton 786-202MR _ Current Transformer , Relay Class - C400, Window Size - 6.5
APPLICATION:
Relaying and metering
FREQUENCY:
50-400 Hz.
Crompton 786-202MR _ Current Transformer , Relay Class - C400, Window Size - 6.5
APPLICATION:
Relaying and metering
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. Full wave
CONTINUOUS THERMAL Current RATING FACTOR:
2.0 at 30°c amb., 1.5 at 55°c amb
WINDOW DIAMETER:
6.5
APPROXIMATE WEIGHT:
58lbs.
CONNECTIONS:
-Secondary terminals are brass studs No. 8-32 with one flat washer, lockwasher, and regular nut
Specifications:
- Catalog Number: 786-202MR
- Relay Class: C400
- ANSI Metering Class at 60Hz: 0.3 B1.8
- Continuous Thermal @ 30°C: 2.0
- Continuous Thermal @ 50°C: 1.5
- Weight: 58
- Model: 786MR
- Window Size: 6.5
- Width: 9.88
- Height: 9.88
- Depth: 6.75
Specifications Sheet:
Datasheet.pdf0 Reviews Hide Reviews Show Reviews
