Crompton 3VTL460-120 _ 3 Phase Voltage Transformer , Turns Ratio - 1:1, Line to Line Voltage Rating - 120:120

FREQUENCY:
60 Hz.

STANDARD SECONDARY VOLTAGE:
120 Volts Line-to-Line

ACCURACY CLASS: (Per Phase)
0.6 W, 1.2 X at 60 Hz

INSULATION LEVEL:
600 Volts, 10 kV BIL. full wave

THERMAL RATING: (Per Phase)
150 VA at 30°C amb.
100 VA at 55°C. amb.

APPROXIMATE WEIGHT:
24 lbs.

Features:

• The model 3VTL460 is an assembly of three Transformer s in one case.
• The primary and secondary terminals are No. 8-32 screws into½" deep brass inserts fitted with one lockwasher and flat washer.
• The core and coil assembly is encased in a thermoplastic shell and filled with resin.
• These Transformer s are designed for operation line to line. All terminals are accessible.
• Spacing between live parts per U.L. 1558.

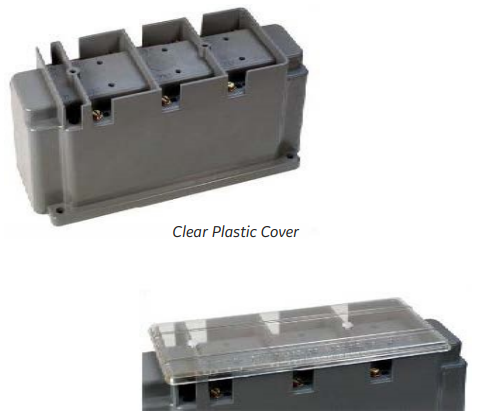

• The Transformer has a clear plastic terminal cover.

Specifications:

• Catalog Number: 3VTL460-120
• Line to Line Voltage Rating: 120:120
• Turns Ratio: 1:1
• Rec. Primary Fuse Rating: 4.0
• Weight in lbs: 24
