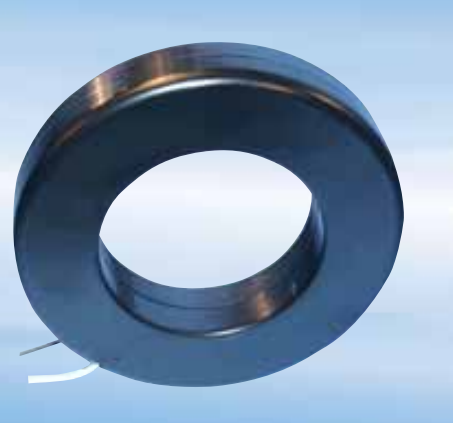

Crompton 8SHT-322 Current Transformer , Current Ratio - 3200:5

Application:
Metering

Frequency:
50-400Hz

Insulation Level:
600 Volts, 10kV BIL full wave

• Terminals are brass studs No 8-32 with one flat washer, lockwasher and regular nut
• Flexible leads are UL 1015 105°C, CSA approved, #16 AWG, 24" long
• Non-standard length to be specified
• Model 8SHT also available as 8SHL, with leads
• Order Mount ing bracket kit separately when required for Model 8SHT
• Approximate weight: 2.5 lbs

Specification:

• Catalogue Number: 8SHT-322
• Current Ratio: 3200:5
• V.A.for±1% class: 70.0
• Weight in lbs: 2.5
• Window Diameter: 3.25"
