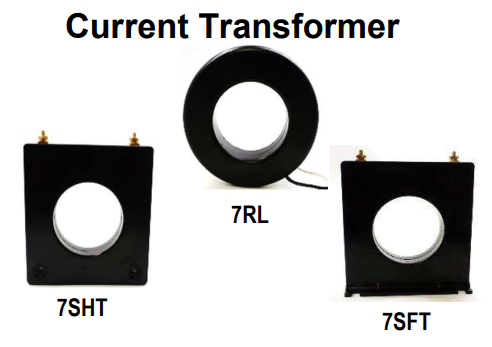

Crompton 7SFT-751 Current Transformer , Current Ratio - 750:5

APPLICATION:
With ammeters, wattmeters and cross Current compensation.
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
2.50”
APPROXIMATE WEIGHT:
1.5 lbs.
CONNECTIONS:
-Flexible leads are UL 1015 105 C, CSA approved #16 AWG, 24” long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-SFT and SHT case styles also available as SFL and SHL with leads
-Mount ing kit 59-0219

General Specifications

• Depth: 1.08
• Height: 4.85
• Width: 4.56
• Window Size: 2.5

Main Specifications

• Catalog Number: 7SFT-751
• Current Ratio: 750:5
• Accuracy at 60 HZ: + 1%
• Burden VA at 60 HZ: 30
