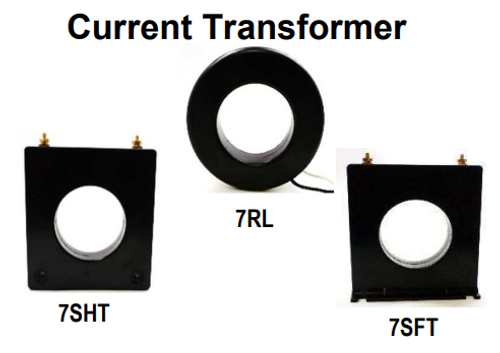

Crompton 7RL-122 Current Transformer , Current Ratio - 1200:5
Write a Review
Write a Review
Crompton
Crompton 7RL-122 Current Transformer , Current Ratio - 1200:5
$72.38
- Brand
- Crompton
- SKU:
- 7RL-122
- Availability:
- Y
Crompton 7RL-122 Current Transformer , Current Ratio - 1200:5
APPLICATION:
With ammeters, wattmeters and cross Current compensation.
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
2.50
APPROXIMATE WEIGHT:
1.5 lbs.
CONNECTIONS:
-Flexible leads are UL 1015 105 C, CSA approved #16 AWG, 24 long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-SFT and SHT case styles also available as SFL and SHL with leads
-Mount ing kit 59-0219
General Specifications
- Depth: 1.1
- Height: 4.58
- Window Size: 2.5
- Width: 4.58
Main Specifications
- Catalog Number: 7RL-122
- Current Ratio: 1200:5
- Accuracy at 60 HZ: + 1%
- Burden VA at 60 HZ: 35
0 Reviews Hide Reviews Show Reviews
Crompton

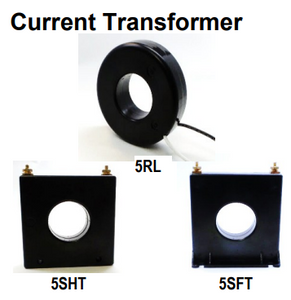

Crompton 5SHT-122 Current Transformer , Current RATIO - 1200:5
