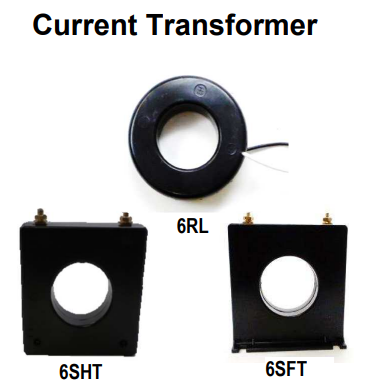

Crompton 6SFT-251 Current Transformer , Current Ratio - 250:5
Write a Review
Write a Review
Crompton
Crompton 6SFT-251 Current Transformer , Current Ratio - 250:5
$50.91
- Brand
- Crompton
- SKU:
- 6SFT-251
- Availability:
- Y
Crompton 6SFT-251 Current Transformer , Current Ratio - 250:5
APPLICATION:
With ammeters, wattmeters and cross Current compensation
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
2.06
APPROXIMATE WEIGHT:
1.2 lbs.
CONNECTIONS:
-Flexible leads are UL 1015 105 C, CSA approved #16 AWG, 24 long
-Non-standard length to be specified.
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-Mount ing bracket 59-0223
-SFT and SHT case styles also available as SFL and SHL with leads
-Mount ing kit 59-0223
General Specifications
- Depth: 1.1
- Height: 4.22
- Width: 4.12
- Window Size: 2.06
Main Specifications
- Catalog Number: 6SFT-251
- Current Ratio: 250:5
- Accuracy at 60 HZ: + 1%
- Burden VA at 60 HZ: 7.5
