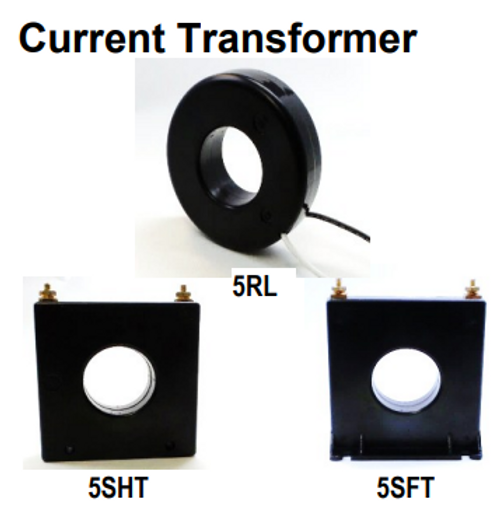

Crompton 5SFT-301 Current Transformer , Current RATIO - 300:5
Write a Review
Write a Review
Crompton
Crompton 5SFT-301 Current Transformer , Current RATIO - 300:5
$42.83
- Brand
- Crompton
- SKU:
- 5SFT-301
- Availability:
- Y
Crompton 5SFT-301 Current Transformer , Current RATIO - 300:5
APPLICATION:
With ammeters, wattmeters and cross Current compensation
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
1.56
APPROXIMATE WEIGHT:
1.0 lbs.
CONNECTIONS:
-Flexible Leads are UL 1015 105°C, CSA approved #16AWG, 24 long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lock washer, and regular nut
-SHT and SFT case style also available as SHL and SFL with leads
-Mount ing bracket Part # 59-0218
General Specifications
- Depth: 1.09
- Height: 3.78
- Width: 3.53
- Window Size: 1.56
Main Specifications
- Current Ratio: 300:5
- Accuracy at 60 HZ: + 1%
- Burden VA at 60 HZ: 12.5
