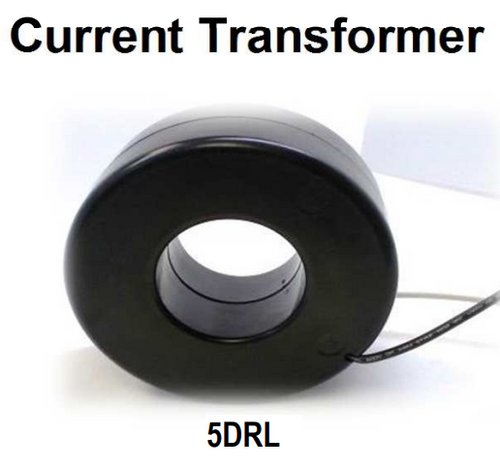

Crompton 5DRL-102 Current Transformer , Current Ratio - 1000:5

APPLICATION:
With ammeters, wattmeters and cross Current compensation
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
1.56”
APPROXIMATE WEIGHT:
2.0 lbs.
CONNECTIONS:
-Flexible Leads are UL 1015 105°C, CSA approved #16AWG, 24” long
-Non-standard length to be specified

General Specifications

• Window Size: 1.56
• Width: 3.63
• Height: 3.63
• Depth: 2.06

Main Specification

• Catalog Number: 5DRL-102
• Current Ratio: 1000:5
• Accuracy at 60 Hz: + 1%
• Burden VA at 60 Hz: 75
