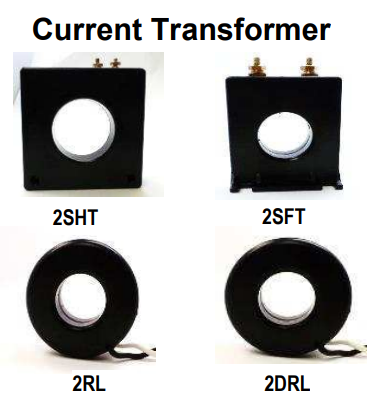

Crompton 2SHT-301 Current Transformer , Current Ratio - 300:5
Write a Review
Write a Review
Crompton
Crompton 2SHT-301 Current Transformer , Current Ratio - 300:5
$36.78
- Brand
- Crompton
- SKU:
- 2SHT-301
- Availability:
- Y
Crompton 2SHT-301 Current Transformer , Current Ratio - 300:5
APPLICATION:
Generally for Ammeter use only
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW:
1:00, 1.05, 1.13
APPROXIMATE WEIGHT:
0.5 lbs.
CONNECTIONS:
-Flexible Leads are UL 1015 105°C, CSA approved #16 AWG, 24 long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-SHT and SFT case styles also available as SHL or SFL with Leads
-Mount ing bracket for Model 2SHT part 59-0217
General Specifications
- Window Size: 1.13
- Width: 2.4
- Height: 2.71
- Depth: 0.95
Main Specifications
- Current Ratio: 300:5
- Accuracy at 60 HZ: + 1%
- Burden VA at 60 HZ: 8
