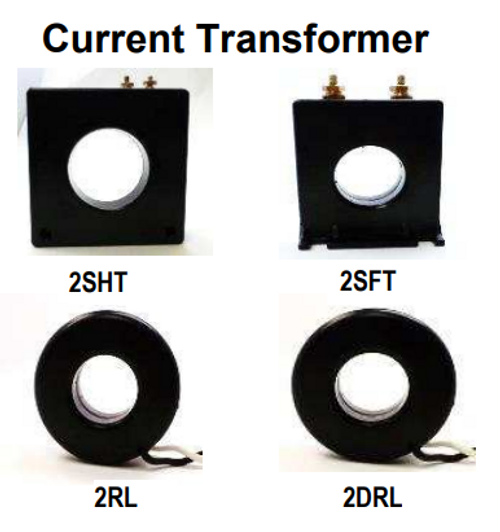

Crompton 2SFT-750 Current Transformer , Current Ratio - 75:5

APPLICATION:
Generally for Ammeter use only
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW:
1:00”, 1.05”, 1.13”
APPROXIMATE WEIGHT:
0.5 lbs.
CONNECTIONS:
-Flexible Leads are UL 1015 105°C, CSA approved #16 AWG, 24” long
-Non-standard length to be specified
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
-SHT and SFT case styles also available as SHL or SFL with Leads
-Mount ing bracket for Model 2SHT part 59-0217

General Specifications

• Depth: 2
• Height: 2.68
• Width: 2.4
• Window Size: 1.13

Main Specifications

• Current Ratio: 75:5
• Accuracy at 60 HZ: + 3%
• Burden VA at 60 HZ: 2
