Crompton 298-500 Current Transformer , Current Ratio - 50:5
Write a Review
Write a Review
Crompton
Crompton 298-500 Current Transformer , Current Ratio - 50:5
$137.26
- Brand
- Crompton
- SKU:
- 298-500
- Availability:
- In Stock
Crompton 298-500 Current Transformer , Current Ratio - 50:5
APPLICATION:
Metering
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
1.50, 2.25, 3.0, 3.38, 3.75
APPROXIMATE WEIGHT:
18, 15, 12, 10, 9 lbs.
- Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
- Multi-ratios available upon request
Specification:
- Catalog Number: 298-500
- Current Ratio: 50:5
- Relay Class: NA
- Weight in lbs: 12
- Window Diameter: 3.0
0 Reviews Hide Reviews Show Reviews
Crompton

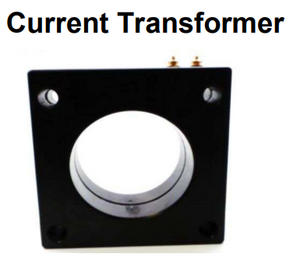

Crompton 298-501 Current Transformer , Current Ratio - 500:5
