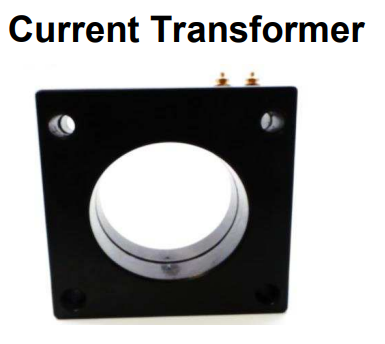

Crompton 297-750 Current Transformer , Current Ratio - 75:5

Crompton 297-750 Current Transformer , Current Ratio - 75:5

Write a Review
$340.32
Brand
SKU:
297-750
Availability:
Y

Crompton 297-750 Current Transformer , Current Ratio - 75:5

APPLICATION:
Metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:

Adding to cart… The item has been added
Add to Wish List

Crompton 297-750 Current Transformer , Current Ratio - 75:5

APPLICATION:
Metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave

WINDOW DIAMETER:
1.50”, 2.25”, 3.0”, 3.38”, 3.75”

APPROXIMATE WEIGHT:
18, 15, 12, 10, 9 lbs.

CONNECTIONS:
  • Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
  • Multi-ratios available upon request

Specification:

  • Catalog Number: 297-750
  • Current Ratio: 75:5
  • Relay Class: C10
  • Weight in lbs: 15
  • Window Diameter: 2.25”
