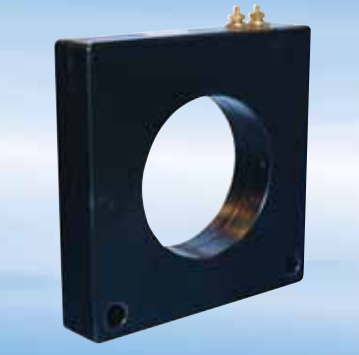

Crompton 24-151 Current Transformer , Current Ratio - 150:5
$80.61
- Brand
- Crompton
- SKU:
- 24-151
- Availability:
- Y
Crompton 24-151 Current Transformer , Current Ratio - 150:5
Application:
Relaying and metering
Frequency:
50 400Hz
Insulation Level:
600 Volts, 10kV BIL full wave
- Terminals are brass studs No. 8 32 with one flat washer, lockwasher and regular nut
- Multi-ratios available
- Order Mount ing bracket kit separately
- Approximate weight: 10 lbs
Specification:
- Catalogue Number: 24-151
- Current Ratio: 150:5
- V.A.for±1% class: NA
- Weight in lbs: 6.5
- Window Diameter: 2.5"
