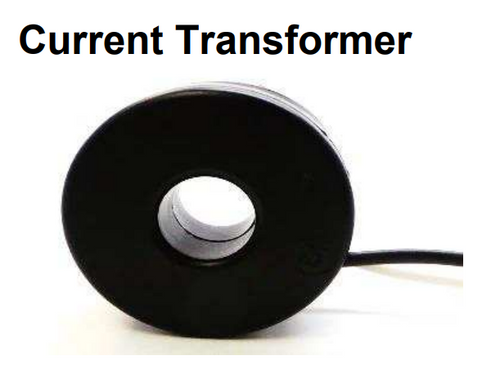

Crompton 1A-600 Current Transformer , Current Ratio - 60:5
Write a Review
Write a Review
Crompton
Crompton 1A-600 Current Transformer , Current Ratio - 60:5
$54.13
- Brand
- Crompton
- SKU:
- 1A-600
- Availability:
- Y
Crompton 1A-600 Current Transformer , Current Ratio - 60:5
APPLICATION:
With ammeters, energy management systems and instrumentation
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
0.64
APPROXIMATE WEIGHT:
0.42 lbs.
CONNECTIONS:
-Flexible Leads are UL 1015 105°C, CSA approved #16AWG, 24 long
-Non-standard length to be specified -1 Amp, and other secondary Currents available upon request
General Specifications
- Window Size: 0.64
- Width: 1.99
- Height: 1.99
- Depth: 1.25
Main Specifications
- Catalog Number: 1A-600
- Current Ratio: 60:5
- Accuracy at 60 HZ: + 1%
- Burden VA at 60 HZ: 2
0 Reviews Hide Reviews Show Reviews
Crompton
Crompton 2DRL-600 Current Transformer , Current Ratio - 60:5
$48.86
Crompton 2DRL-600 Current Transformer , Current Ratio - 60:5APPLICATION: Generally for Ammeter use only FREQUENCY: 50-400 Hz. INSULATION LEVEL: 600 Volts. 10 kV BIL. full wave WINDOW: 1:00, 1.05, 1...
Crompton

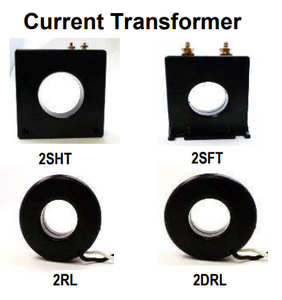

Crompton 2RL-600 Current Transformer , Current Ratio - 60:5
