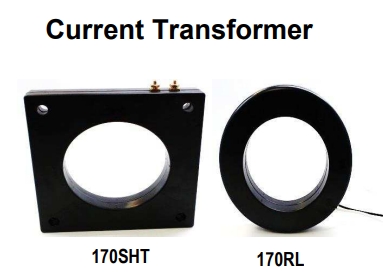

Crompton 170SHT-751 Current Transformer , Current Ratio - 750:5

APPLICATION:
Metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave

WINDOW DIAMETER:
4.25”

APPROXIMATE WEIGHT:
3 lbs.

• Flexible leads are UL 1015 105° C CSA approved, #16 AWG, 24" long
• Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
• Also available as 170SHL with leads Mount ing kit– 59-0221

Specification:

• CatalogNumber: 170SHT-751
• Current Ratio: 750:5
• V.A. FOR + 1% CLASS: 40
• Weight in lbs: 3
• Window Diameter: 4.25”
