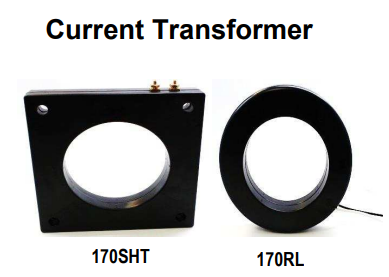

Crompton 170RT-801 Current Transformer , Current Ratio - 800:5
Write a Review
Write a Review
Crompton
Crompton 170RT-801 Current Transformer , Current Ratio - 800:5
$84.19
- Brand
- Crompton
- SKU:
- 170RL-801
- Availability:
- Y
Crompton 170RT-801 Current Transformer , Current Ratio - 800:5
APPLICATION:
Metering
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
4.25
APPROXIMATE WEIGHT:
3 lbs.
- Flexible leads are UL 1015 105° C CSA approved, #16 AWG, 24" long
- Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
- Also available as 170SHL with leads Mount ing kit 59-0221
Specification:
- CatalogNumber: 170RT-801
- Current Ratio: 800:5
- V.A. FOR + 1% CLASS: 50
- Weight in lbs: 3
- Window Diameter: 4.25
