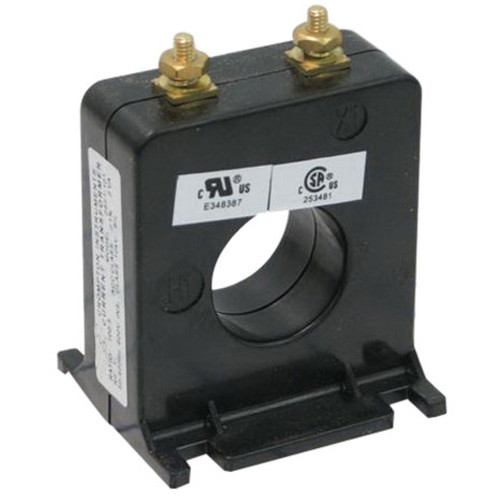

Crompton 15SFT-750 Current Transformer , Current Ratio - 75:5
Write a Review
Write a Review
Crompton
Crompton 15SFT-750 Current Transformer , Current Ratio - 75:5
$61.89
- Brand
- Crompton
- SKU:
- 15SFT-750
- Availability:
- Y
Crompton 15SFT-750 Current Transformer , Current Ratio - 75:5
APPLICATION:
With ammeters, energy management systems and instrumentation
FREQUENCY:
50-400 Hz..
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
0.94
APPROXIMATE WEIGHT:
0.9 lbs.
CONNECTIONS:
-Non-standard lead length can be specified
-Flexible leads are UL 1015 105° C CSA approved, #16 AWG, 24" long
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
General Specifications
- Window Size: 0.94
- Width: 2.67
- Height: 2.75
- Depth: 1.38
Main Specifications
- Catalog Number: 15SFT-750
- Current Ratio: 75:5
- Accuracy at 60 HZ: + 1.5%
- Burden VA at 60 HZ: 2.5
