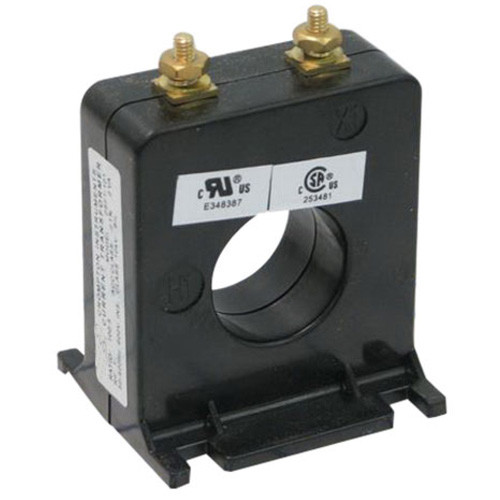

Crompton 15SFT-1250 Current Transformer , Current Ratio - 125:5

APPLICATION:
With ammeters, energy management systems and instrumentation
FREQUENCY:
50-400 Hz..
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
0.94”
APPROXIMATE WEIGHT:
0.9 lbs.
CONNECTIONS:
-Non-standard lead length can be specified
-Flexible leads are UL 1015 105° C CSA approved, #16 AWG, 24" long
-Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut

General Specifications

• Window Size: 0.94
• Width: 2.67
• Height: 2.75
• Depth: 1.38

Main Specifications

• Catalog Number: 15SFT-1250
• Current Ratio: 125:5
• Accuracy at 60 HZ: + 1.0%
• Burden VA at 60 HZ: 4
