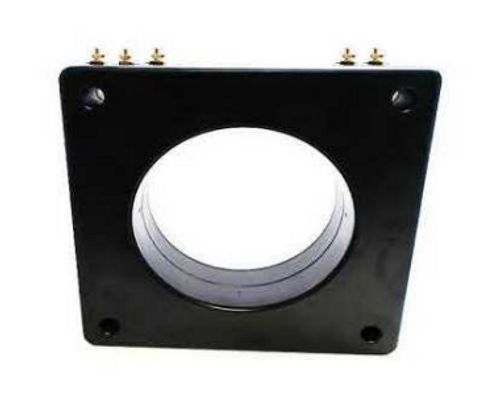

Crompton 145-401 Current Transformer , Current Ratio - 400:5
Write a Review
Write a Review
Crompton
Crompton 145-401 Current Transformer , Current Ratio - 400:5
$878.90
- Brand
- Crompton
- SKU:
- 145-401
- Availability:
- Y
Crompton 145-401 Current Transformer , Current Ratio - 400:5
APPLICATION:
Relaying and metering
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
6.00
APPROXIMATE WEIGHT:
83 lbs.
CONNECTIONS:
- Terminals are brass connections No. 10-32 UNF with one flat washer, lockwasher, and regular nut
- Multi-ratios available upon request
- Mount ing Kit 59-0215 (CR) and 59-0216 (CL)
Specification:
- Catalog Number: 145-401
- Current Ratio: 400:5
- Relay Class: C200
- Weight in lbs: 83
- Window Diameter : 6.00
0 Reviews Hide Reviews Show Reviews
