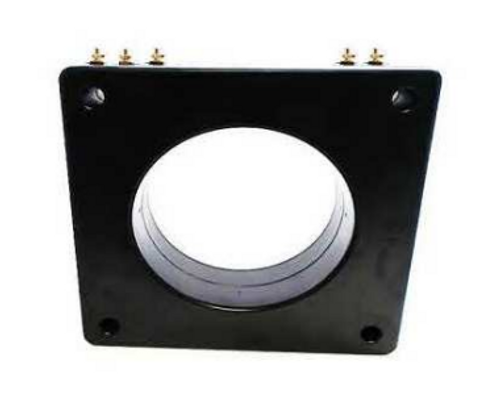

Crompton 145-122 Current Transformer , Current Ratio - 1200:5

APPLICATION:
Relaying and metering

FREQUENCY:
50-400 Hz.

INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave

WINDOW DIAMETER:
6.00”

APPROXIMATE WEIGHT:
83 lbs.

CONNECTIONS:

• Terminals are brass connections No. 10-32 UNF with one flat washer, lockwasher, and regular nut
• Multi-ratios available upon request
• Mount ing Kit– 59-0215 (CR) and 59-0216 (CL)

Specification:

• Catalog Number: 145-122
• Current Ratio: 1200:5
• Relay Class: C400
• Weight in lbs: 83
• Window Diameter : 6.00”
