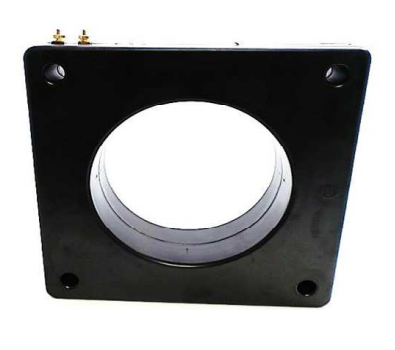

Crompton 142-122 Current Transformer , Current Ratio - 1200:5
Write a Review
Write a Review
Crompton
Crompton 142-122 Current Transformer , Current Ratio - 1200:5
$393.58
- Brand
- Crompton
- SKU:
- 142-122
- Availability:
- Y
Crompton 142-122 Current Transformer , Current Ratio - 1200:5
APPLICATION:
Relaying and metering.
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
7.25
APPROXIMATE WEIGHT:
31 lbs.
- Terminals are brass connections No. 10-32 UNF with one flat washer, lockwasher, and regular nut
- Multi-ratios available upon request
- Mount ing Kit 59-0215 (CR) and 59-0216 (CL)
Specification:
- Catalog Number: 142-122
- Current Ratio: 1200:5
- Relay Class: C100
- Weight in lbs : 31
- Window Diameter : 7.25
