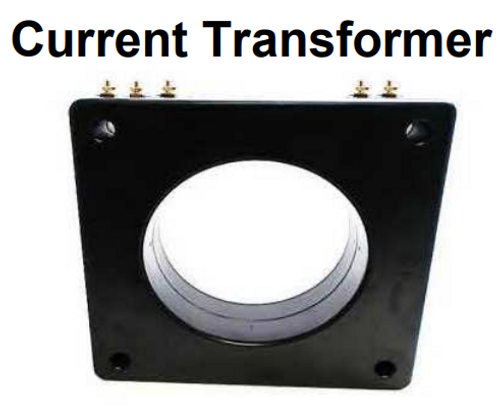

Crompton 141-252 Current Transformer , Current Ratio - 2500:5
Write a Review
Write a Review
Crompton
Crompton 141-252 Current Transformer , Current Ratio - 2500:5
$538.50
- Brand
- Crompton
- SKU:
- 141-252
- Availability:
- Y
Crompton 141-252 Current Transformer , Current Ratio - 2500:5
APPLICATION:
Relaying and metering.
FREQUENCY:
50-400 Hz.
INSULATION LEVEL:
600 Volts. 10 kV BIL. full wave
WINDOW DIAMETER:
8.13
APPROXIMATE WEIGHT:
44 lbs.
CONNECTIONS:
-Terminals are brass connections No. 10-32 UNF with one flat washer, lockwasher, and regular nut.
Specification:
- Catalog Number: 141-252
- Current Ratio: 2500:5
- Relay Class: C400
- Weight in lbs: 44
- Window Diameter : 8.13
