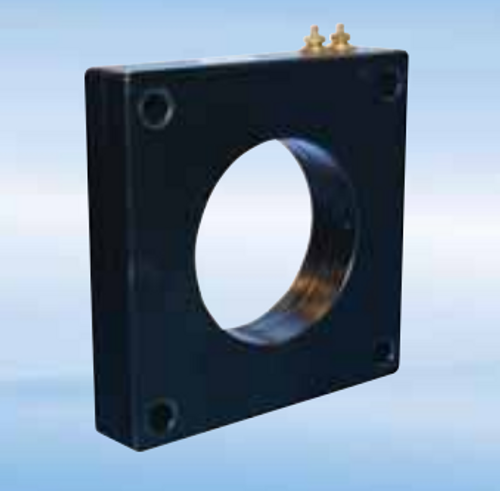

Crompton 100-122 Current Transformer , Current Ratio - 1200:5*

Application:
Relaying and metering

Frequency:
50– 400Hz

Insulation Level:
600 Volts, 10kV BIL full wave

• Terminals are brass studs No. 8– 32 with one flatwasher, lockwasher and regular nut
• Order Mount ing bracket kit separately
• Multi-ratios available upon request
• Approximate weight: 9.5 lbs

Specification:

• Catalogue Number: 100-122
• Current Ratio: 1200:5*
• V.A.for±1% class: C20
• Weight in lbs: 9.5
• Window Diameter : 4.0"
