Features:

• One Minute Setup for Hundreds of I/O Ranges
• External Switches & Tables for Range Selection
• Non-Interactive Zero and Span Calibration
• Full 2000 V Input/Output/Power Isolation
• Input and Output LoopTracker® LEDs
• Output Test Button
• Built-In Loop Power Supply for mA Output

Applications:

• Convert AC Signals to DC Process Signals
• Monitor Line Voltage or Current Levels
• Isolate and Convert AC Signals for Panel Meters, PLCs, Recorders, Data Acquisition, DCS, & SCADA Systems

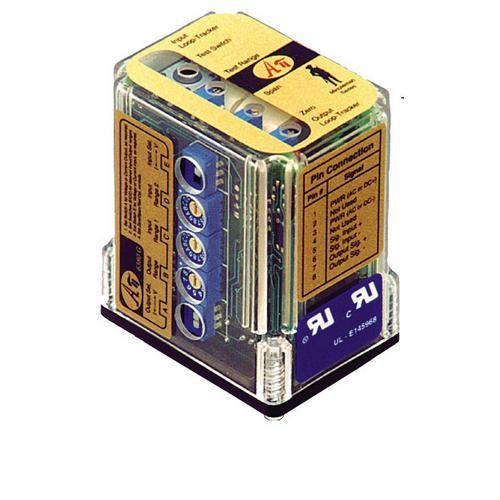

The API 6380 G accepts an AC voltage or current input and provides an optically isolated DC voltage or current output that is linearly related to the input. Accuracy is maintained over a wide frequency range for maximum flexibility. The input is a true RMS measurement for distorted AC inputs.

The full 3-way (input, output, power) isolation makes this module useful for ground loop elimination, common mode signal rejection or noise pickup reduction.

20 input and 16 output ranges can be field-configured via external rotary and slide switches. Popular ranges are listed on the module label. Consult the factory for assistance with special ranges.

LoopTracker

API exclusive features include two LoopTracker LEDs (green for input, red for output) that vary in intensity with changes in the process input and output signals. These provide a quick visual picture of your process loop at all times and can greatly aid in saving time during initial startup and/or troubleshooting.

Output Test

An API exclusive feature includes the test button to provide a fixed output (independent of the input) when held depressed. The test output level is potentiometer adjustable from 0 to 100% of output span. The output test button greatly aids in saving time during initial startup and/or troubleshooting.
