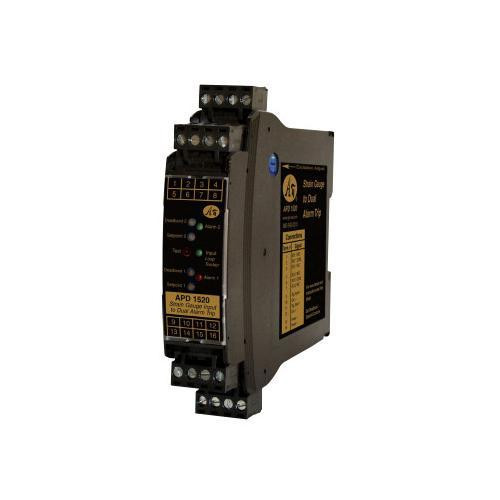

Cecomp Electronics, APD 1520, Dual Alarm Trip for 1 to 4 Sensor, 85-265 VAC, 60-300 VDC Power

Features with all optional accessories:

• User adjustable setpoint(s)
• User adjustable deadband(s)
• 8 Amp SPDT contacts
• Input LoopTracker LED
• Alarm status LEDs
• Alarm options: LO, HI/HI, LO/LO, band alarm
• Optional reverse acting
• Optional latching alarms
• Push to test/reset
• Remote push to test/reset
• Full I/O/power isolation
• Removable plugs
• DIN rail mount without tools
• Factory Set Input Range and Excitation
• Alarm Test, Optional Reset Button

Applications:

• Load Cell Weighing Systems and Scales
• Strain Gauge Pressure Sensors and Transducers
• Tanks, Scales, Extruder Melt Pressure, Crane Loads

The APD 1520 accept a strain gauge, bridge, or load cell input and provide a visual alarm indication and alarm relay contact outputs. The input is factory configured to a specific excitation voltage and millivolt input range. The input can be configured as zero-based (i.e., 0 to 20 mV), bipolar (i.e., -30 to +30 mV) for push-pull applications, or offset (i.e., 5 to 33 mV) to electronically compensate for deadweights (tare). The alarm types are factory configured. Front-accessible potentiometers are used to adjust alarm setpoint and deadband.

LoopTracker and Alarm Status LEDs

API exclusive features include a LoopTracker LED that varies in intensity with changes in the process input signal. A two red/green bi-color alarm status LED visually indicate alarm status. These LEDs provide a quick visual picture of your process at all times.

Output Test / Unlatch

API's exclusive Output Test button can be used to verify the alarm and system operation and also provides the additional function of unlatching the alarm when the latching option has been ordered. This feature can be remotely operated. The output test button greatly aids in saving time during initial startup and/or troubleshooting.
