Absolute Process Instruments APD 1420 _ RTD input dual alarm

Cecomp Electronics, APD 1420, Dual Alarm Trip for RTD Input, 85-265 VAC, 60-300 VDC Power

Features with all optional accessories:

  • 2-wire or 3-wire RTD
  • Lead wire compensation for 3-wire
  • User adjustable setpoint(s)
  • User adjustable deadband(s)
  • 8 Amp SPDT contacts
  • Input LoopTracker LED
  • Alarm status LEDs
  • Alarm options: LO, HI/HI, LO/LO
  • Optional reverse acting
  • Optional latching alarms
  • Push to test/reset
  • Remote push to test/reset
  • Full I/O/power isolation
  • Removable plugs
  • DIN rail mount without tools

Applications:

  • Process Limit Alarm
  • Monitor, Heaters, Refrigerators, Ovens
  • Process Signal Over or Under Alarms

The APD 1420 accept an RTD temperature input and provide a visual alarm indication and alarm relay contact outputs. The input type, range, and alarm types are factory configured. The input can be configured for most 10 Ω to 2000 Ω RTDs. Front-accessible potentiometers are used to adjust alarm setpoint and deadband.

LoopTracker and Alarm Status LEDs

API exclusive features include a LoopTracker LED that varies in intensity with changes in the process input signal. A two red/green bi-color alarm status LED visually indicate alarm status. These LEDs provide a quick visual picture of your process at all times.

Output Test / Unlatch

API's exclusive Output Test button can be used to verify the alarm and system operation and also provides the additional function of unlatching the alarm when the latching option has been ordered. This feature can be remotely operated. The output test button greatly aids in saving time during initial startup and/or troubleshooting.

Specifications Table:

Input10, 100 or 1000 Ohm RTD
OutputTwo 8 Amp DPST Relays
Power to input isolation1200 V
Common mode protection600 VACp or 600 VDC
Temperature Input RangeFactory configured, please specify the following resistance at 0°C, curve, temperature range.
  • RTD types: 10 Ω to 2000 Ω
  • RTDs including 100 Ω 0.00385 DIN, 100 Ω 0.003916, 100 Ω 0.00392, 10 Ω Cu, 1000 Ω Ni-Fe, 120 Ω Ni
  • Temperature range: °F or °C 100°F (55°C) min. span or consult factory
Leadwire Compensation< ±0.05% of span per 1 Ω change in leadwire resistance
Standard Alarm Configuration2 setpoints, 2 SPDT relays. HI/LO alarms, non-latching, normal acting
Setpoint12 turn potentiometer adjustable from 0 to 100% of span
Deadband12 turn potentiometer adjustable from 1 to 100% of span
Response Time70 milliseconds typical
Ambient Temperature Range and Stability“10°C to +60°C operating ambient
ConnectorsFour 4-terminal removable connectors, 14 AWG max wire size
Power85-265 VAC or 60-300 VDC
Write a Review

0 Reviews Hide Reviews Show Reviews

Absolute Process Instruments APD 1420 D _ RTD input dual alarm

Absolute Process Instruments

Absolute Process Instruments APD 1420 D _ RTD input dual alarm

$379.00
Absolute Process Instruments APD 1420 D _ RTD input dual alarmCecomp Electronics, APD 1420 D, Dual Alarm Trip for RTD Input, 9-30 VDC, 10-32 VAC PowerFeatures with all optional accessories:2-wire or...
Add to Cart The item has been added
Absolute Process Instruments API 1420 G _ RTD input dual alarm

Absolute Process Instruments

Absolute Process Instruments API 1420 G _ RTD input dual alarm

$329.00
Absolute Process Instruments API 1420 G _ RTD input dual alarmFeatures with all optional accessories:Automatic Leadwire CompensationField Adjustable SetpointsPlug-In Design for Fast InstallationInput...
Add to Cart The item has been added
Absolute Process Instruments APD 1220 D _ RTD or thermistor input dual alarm

Absolute Process Instruments

Absolute Process Instruments APD 1220 D _ RTD or thermistor input dual alarm

$379.00
Absolute Process Instruments APD 1220 D _ RTD or thermistor input dual alarmAPD 1220 DRTD or thermistor input dual alarm. APD 1220 Dual Alarm Trip Two DPST contact sets Standard: HI/LO alarms, normal...
Add to Cart The item has been added

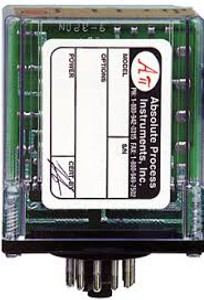

Absolute Process Instruments API 1420 G D _ RTD input dual alarm
