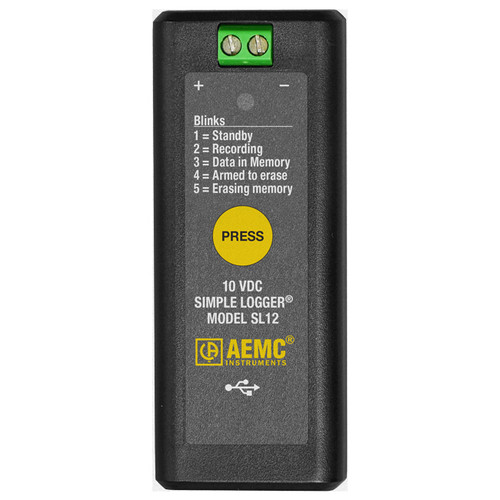

AEMC Simple Logger® Model SL12

AEMC SL12 Description:

The AEMC SL12 Simple Voltage Logger, 10VDC is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5V using the USB interface cable supplied. The input is 0 - 10VDC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into a computer using the USB cable and downloading it from the AEMC web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.

The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all that's needed. The front panel LED alerts the operator of the logger's status.

Key Features:

• Channels: One
• Input: Screw connector
• Range: -10 to +10VDC
• Accuracy (50/60Hz): ±(0.5% R +50mV) with filter set to 10
• Resolution: 10mV
• Maximum Input Voltage: 60VDC
• Input Impedance: 800k?
• Sample Rate: 16 samples/second
• Storage Rate: 1 second
• Storage Modes: Start/Stop
• Recording Length: ?43 days
• Memory: 4 million measurements (8Mb)
• Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed
• Communication: USB 2.0 (Simple Logger software free to download from web site)
• Power Source: 2x1.5V AA (LR6) alkaline batteries or USB 5VDC
• Battery Life: 43 days with new batteries when recording
• Low Battery: Battery voltage display in software
• Batteries need replacement when LED is dim or does not blink
• Dimensions: 3.6 x 1.44 x 1.32 in. (91.44 x 36.58 x 34.8mm)
• Weight (with battery): 3.5oz (99g)
• Case: Polycarbonate
• Operating Temperature: 14° to 122°F (-10° to 50°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Relative Humidity: Up to 85% @ 95°F (35°C)
• Ingress Protection: (IP)
