AEMC FlexProbe® Model 24-3001

AEMC 24-3001 Description:

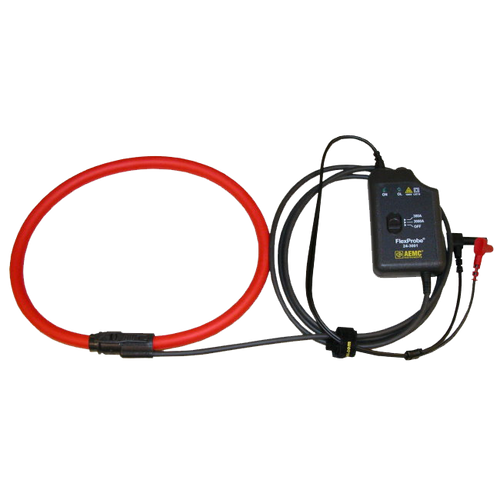

The FlexProbe® Model 24-3001 is a low cost AC current measurement probe designed to plug into digital multimeters, oscilloscopes and power recorders. The Model 24-3001 is composed of a flexible sensor and an electronic module with a 14" double insulated cable. The flexible sensor is designed to fit around large or small conductors and is capable of getting into tight or difficult spaces. It is ideal for measuring AC current in a group of conductors.

Features

• 24" flexible sensor fits around conductors up to 7.6" in diameter
• Dual measurement ranges of 300A and 3000A AC
• Read amperage directly on DMM display
• mV output directly proportional to the AC current measured
• Output is 10mV/A on 300A range and 1mV/A on 3000A range
• Accuracy of 1% of Reading ± 500mA
• 4% influence of conductor position in jaw
• Up to 150 hour battery life
• Dual banana plug termination for direct input into DMMs
• EN 61010, 1000V Cat. III, Pollution Degree: 2
• Flashing LED low battery indicator

Applications

• Motor testing and troubleshooting
• Load monitoring
• HVAC/R troubleshooting
• Power analysis
• Transformer testing
• Substation testing

AEMC 24-3001 Specifications:

What's included with the AEMC 24-3001

• 24-3001 FlexProbe Current Transformer
• Electronic module
• 9V battery
• Manual
