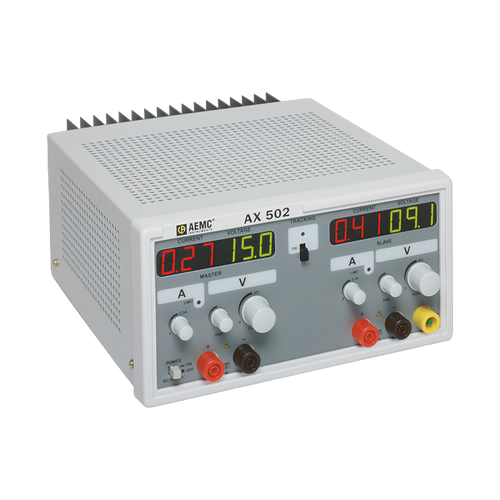

AEMC DC Power Supply Model AX502

AEMC AX502 Description

The AX502 Description dual 30V outputs. It Description a unique master/slave tracking arrangement whereby the ratio between the master and slave can be setup on the fly as needed during the test. Adjusting the master voltage causes the slave to track. Adjusting the slave voltage causes the ratio from master to slave to change accordingly. It Description a Coarse and Fine voltage adjustment as well as a current limiting adjustment. It is built to provide many years of reliable, precise, easy-to-use operation and will be a welcome addition to any lab, test bench or production line.

Features

• Single and dual 0 to 30V DC / 0 to 2.5A outputs
• Series and Parallel operation permit 0 to 60V or 0 to 5A output
• Low noise (<1mV Ripple) and stable linear technology for clean output
• High efficiency toroidal transformers: no fan and low electromagnetic emissions
• Active protection against overloads, short circuits and overheating
• Unique variable tracking mode for Master/Slave operation: Slave or Master track proportionally to the original setting
• Simultaneous display of Voltage and Current
• Highly visible Green (V) and Red (A) LED displays
• Compact design for bench tops
• Designed to EN 61010-1 safety standards

Applications

• Engineering design labs
• Production testing
• Educational labs
• Quality assurance testing
• Approval agency testing
• Repair and calibration labs
